Crane Hoist Switch
4 Double Speed Crane Hoist Switch
Crane Hoist Switch is compact and ergonomic design, and 2 double push button
This model is belong to C series. Except this kind, we also have XAC series(Schneider Model),Y series, F series, H series, etc,
Also, the button is from 2 button to 20 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.
Description:

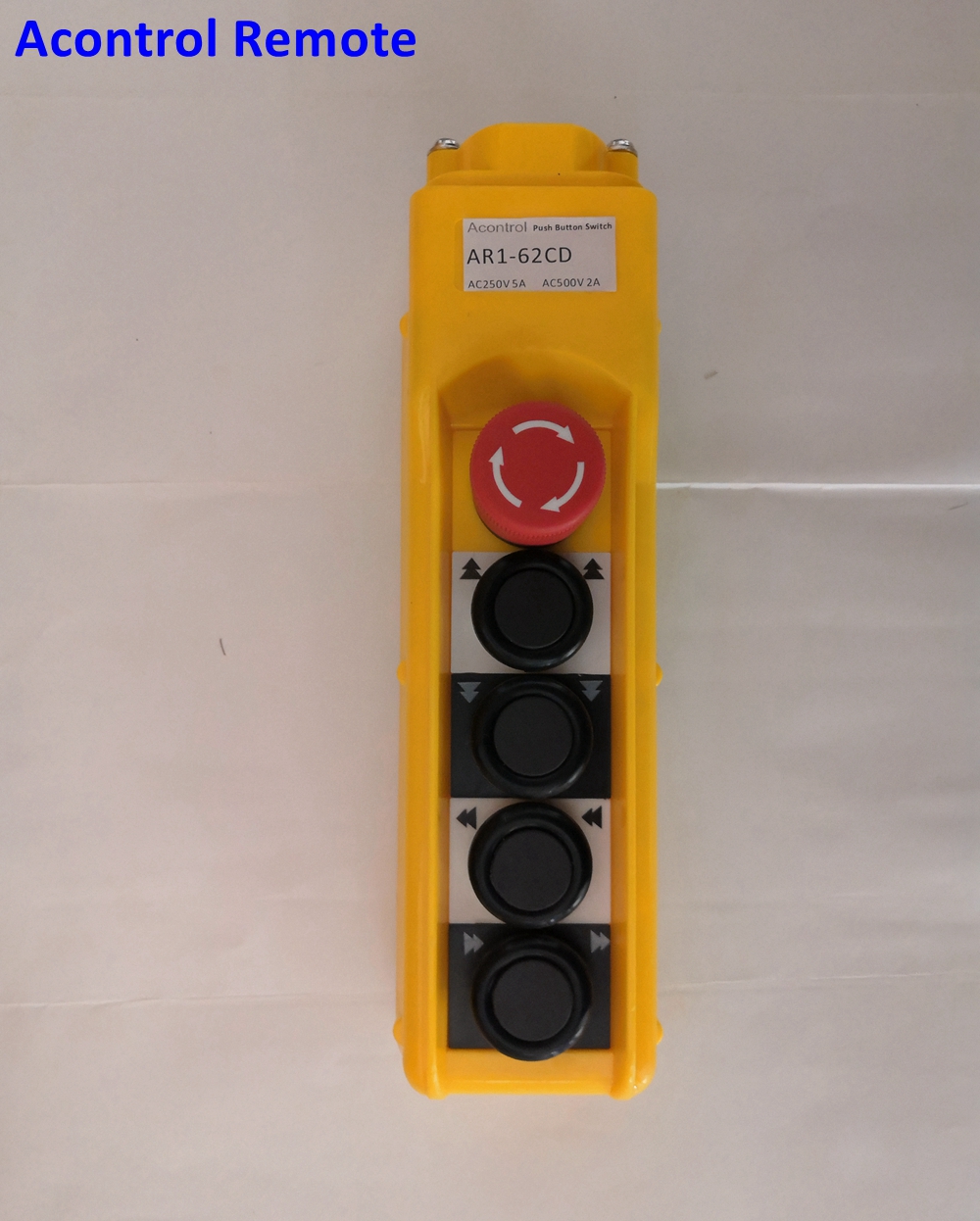

Model: AR1-62CD
Working Current: 5A
Working Voltage: 500V
Button No.: 4 + E-stop
Speed: Double Speed

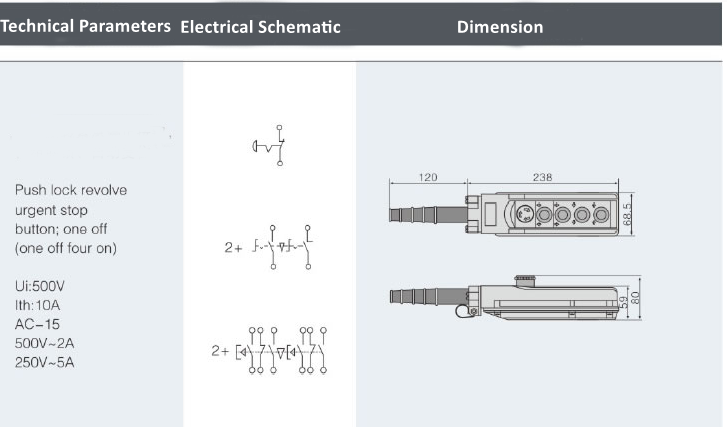

Ui:500V lth:10A
500V-2A 250V-5A
Working temperature: -45~55（℃)
Material: Yellow ABS enclosure
Advantage:
- Various buttons pendant models (from 2 button to 16 buttons)
- Light Wirght
- Standard emergecny switch to cut off the power
- Durable Yellow ABS enclosure
- Ultra-long service life
- Contacts rated 5A at 500VAC
Basic :
| Brand | Acontrol |
| Model: | AR1-62CD |
| Housing Color | Yellow |
| Number of Buttons | 4 |
| Button Color | Black |
| Speed | 2 |
| Start Type | Rotary |
| Button Type | Combination |
| Button Text | Arrow Tip |
Packing Size:
1 piece per box, 32pcs per carton:52 * 41 * 34cm
Overhead crane pendant control are ideal for
- Workstation crane
- Monorails and hoist control
- Electric Chain Winch
- Assemble lines
- Car Transfer
- Electric chain Hoist
- Devit crane
- Lift
- Garden Machine
- Power lifts of truck
- Electric chain Lift
- Other moving equipment you want to control
FAQ:
1. Sample to test is available
2. Customized Brand is available
3. Delivery Fast: 3-4 days for sampling and 7 days for small volume orders
4. CE,FCC standard
More information, contact Acontrol
