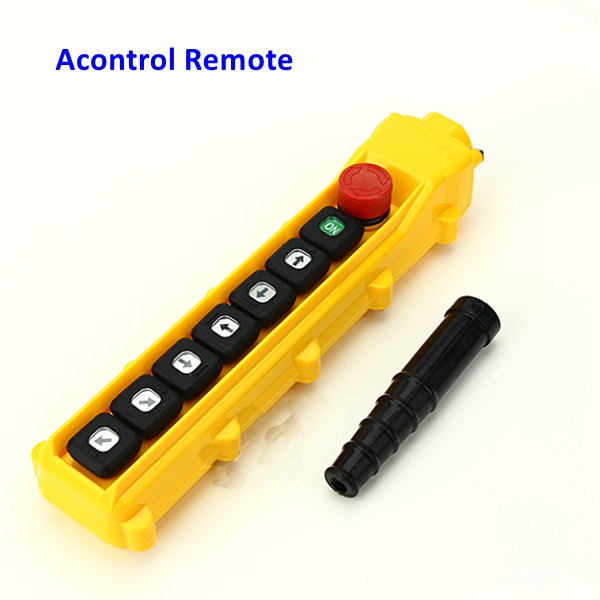

Hoist Pendant Control

Hoist Pendant Controlis a simple type of mechanical switch, which are used to control one function in a machine or device.

This model is belong to Y series. Except this kind, we also have XAC series, C series,Y series, F series, H series, etc,

Also, the button is from 2 button to 8 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.

Basic Information:

Model: AR1-63YD

Button Number: 6 double speed + On button + 1 Emergency Stop

Housing Material: Sturdy ABS plastic

Button Color: Black, white, with emergency stop

Contact Rated Current: 10A

Working Voltage: 500V

Specification:

Advantage:

1. Made of rugged and high impact thermo plastic
2. Ultra-long service life
3. 100g shock resistant
4. Contacts rated 10A at 500VAC
5. Single hand operation, safe and reliable, convenient to use, and can be used with one hand.
6. 100% brand new and high quality

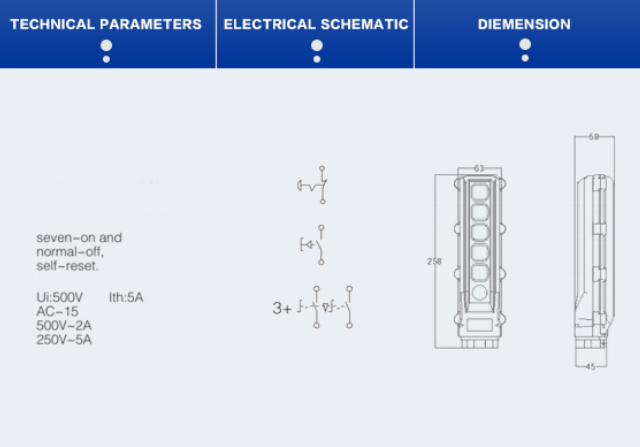

Wiring Connection:

Packing :

1 piece per box, 32pieces per carton

Application:

1. Overhead crane with double girder
2. Overhead crane with single girder
3. Hoist
4. lifting equipment
5. Tiller equipment
6. Garden Equipment
7. Electric Winch
8. Wire Rope Winch
9. Hydraulic winch
10. Electric hoist
11. Hoist winch
12. EOT crane
13. Overhead crane
14. Bridge crane
15. Top running overhead crane
16. Under hung overhead crane
17. Workstation overhead crane

FAQ:

1. Sample to test is available

2. MOQ: 1 piece

3. Delivery Fast:  3-4 days for sampling and 7 days for small volume orders

4. CE,FCC standard

5. Brand: Customized is available

Button number is from 2 button to 12 button, single speed and double speed.

More information, contact Acontrol
