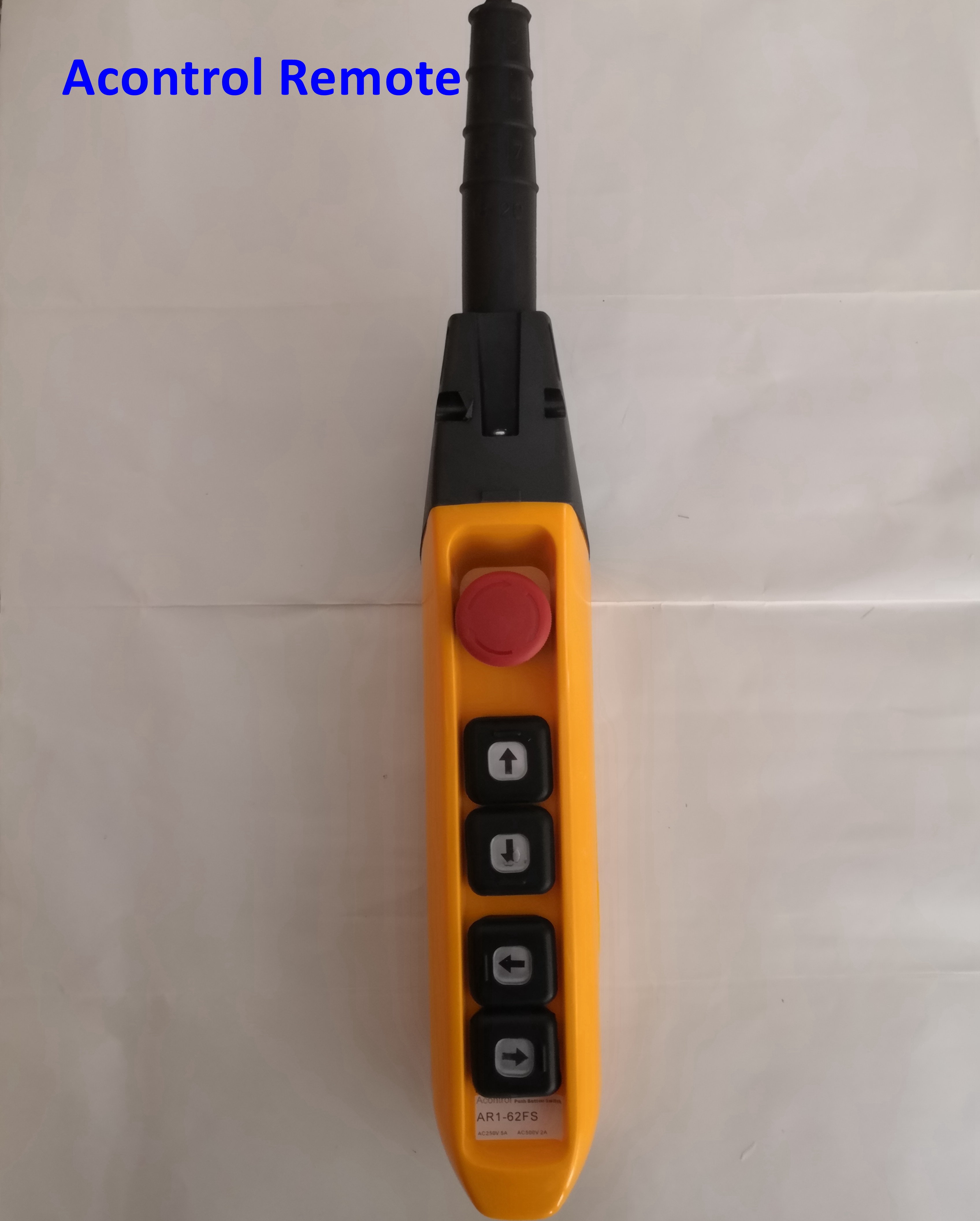

Hoist Remote Control Switch

Hoist Remote Control Switch is compact and ergonomic design, and  1/ single push button.

The  enclosures are made from rugged, double insulated thermoplastic material.

These stations have been designed for easy handling and operation, even with heavy work gloves.

This model is belong to F series. Except this kind, we also have XAC series(Schneider Model),Y series, C series, H series, etc,

Also, the button is from 2 button to 6 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.

Description:

Model: AR1-62FS

Max Current: 10A

Max Voltage: 500V

Button No.: 4 push button + E-stop

Speed: Single

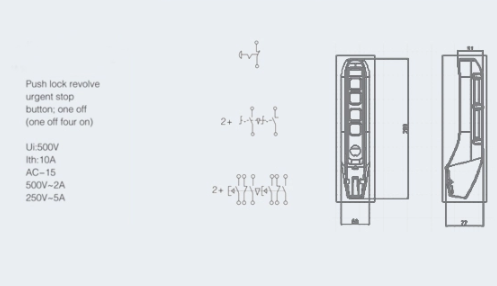

Ui:500V  lth:10A

500V-2A  250V-5A

Working temperature: -45~55（℃)

Material: Yellow ABS enclosure

Remote Control Switch is one important parts in crane industry, mainly control the equipment by wired.

Function Button:

Emergency Stop: if there is emergency case, the equipment will be stop right now when you press the mushroom

Function Button : “↑”  “↓” ” →” “←” , single speed

Basic :

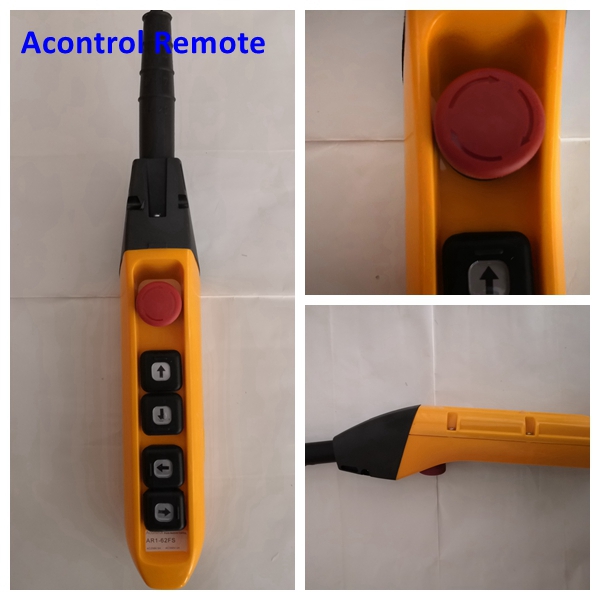

Details:

Product Details:

Package:

1 piece per box,  28pieces per carton, carton size:52*41*37cm

Application:

This model are mainly used in crane industry,

1. EOT crane
2. Overhead crane
3. Bridge crane
4. Single girder overhead crane
5. Double girder overhead crane
6. Top running overhead crane
7. Under hung overhead crane
8. Workstation overhead crane

FAQ:

1. Sample to test is available

2. Customized Brand is available

3. Delivery Fast:  3-4 days for sampling and 7 days for small volume orders

4. CE,FCC standard

Hoist Remote Control Switch and Push Button Switch are including 2 button , 4 button, 6 button, single speed and double speed.

Related Model:

AR1-61FS: 2 button(1 Speed) + 1 Emergency Stop
AR1-61FD: 2 button(2 Speed) + 1 Emergency Stop
AR1-62FD: 4 button(2 Speed) + 1 Emergency Stop
AR1-63FS: 6 button(1 Speed) + 1 Emergency Stop
AR1-63FD: 6 button(2 Speed) + 1 Emergency Stop
