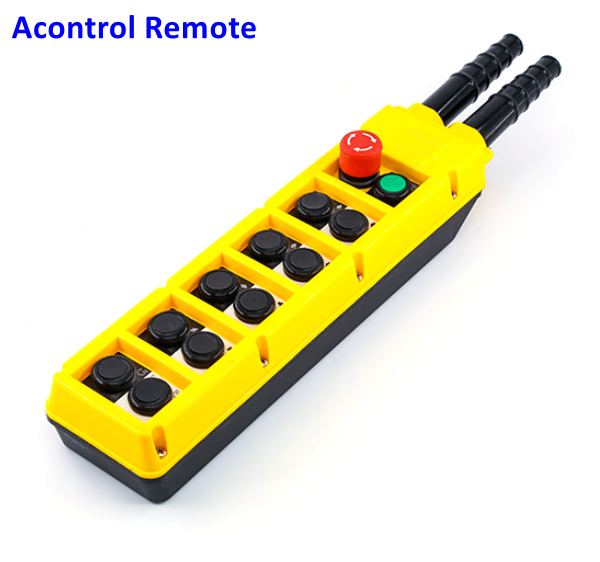

Industrial Wired Control

Industrial Wired Control is compact and ergonomic design, and 2 Speed push button

This model is belong to C series. Except this kind, we also have XAC series(Schneider Model),Y series, F series, H series, etc,

Also, the button is from 2 button to 20 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.

Basic Information:

Model: AR1-66CD (10 double speed button, Open Button, Emergency Stop)

Working Current: 5A

Working Voltage: 500V

Button No.:10 + Open  + Emergency Stop

Ui:500V  lth:10A

500V-2A   250V-5A

Working temperature: -45~55（℃)

Warranty: 12 months

Advantages:

• Various buttons pendant models (from 2 button to 16 buttons)
• Light Weight
• Standard emergecny switch to cut off the power
• Durable Yellow ABS enclosure
• Ultra-long service life
• Contacts rated 5A at 500VAC

Basic:

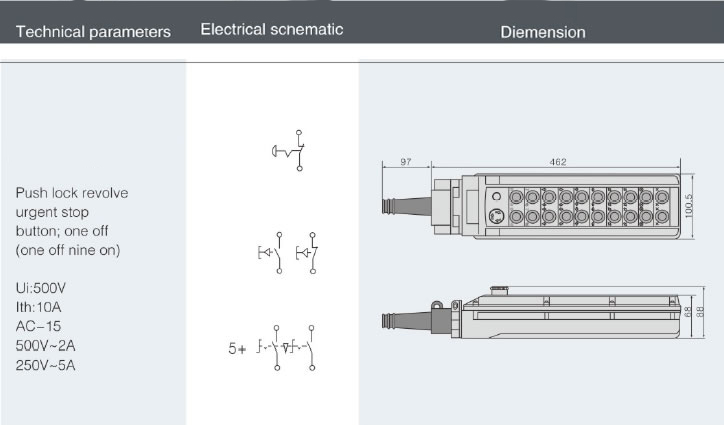

Wiring Diagram:

Packing Size:

1 piece per box,  20pcs per carton

Pendant Control Station are ideal for

1. Workstation crane
2. Monorails and hoist control
3. Electric Chain Winch
4. Car Transfer
5. Electric chain Hoist
6. Devit crane
7. Lift
8. Garden Machine
9. Power lifts of truck
10. Electric chain Lift
11. Other moving equipment you want to control

FAQ:

1. Sample to test is available

2. MOQ: 1 piece

3. Delivery Fast:  3-4 days for sampling and 7 days for small volume orders

4. CE,FCC standard

Button number is from 2 button to 16 button, single speed and double speed.
