Pendant Control Overhead Crane
Description:
Model: AR1-63FD
Button No.: 6 push button + E-stop
Speed: double / 2 speed
Email:[email protected]

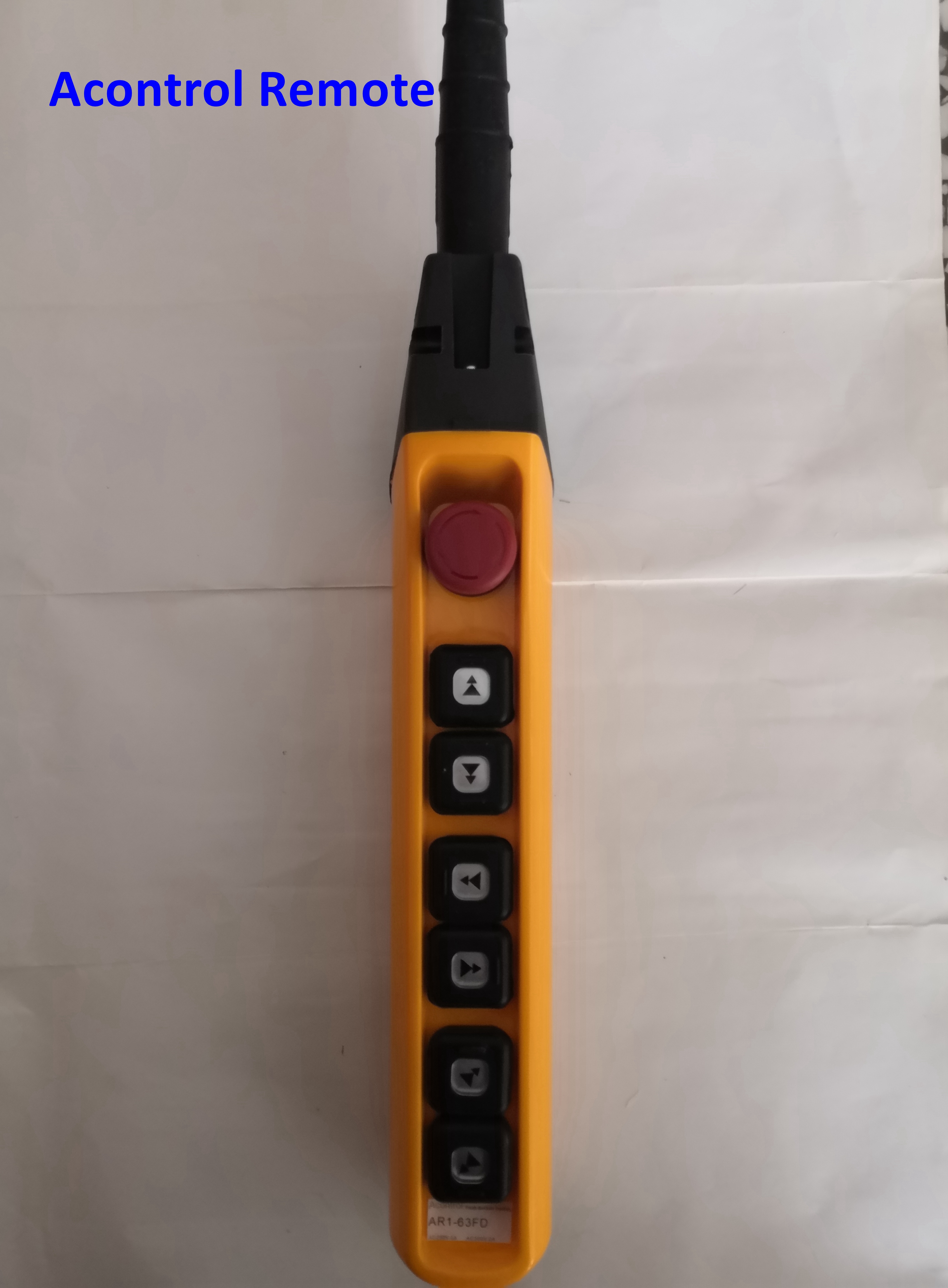

Pendant Control Overhead Crane
Pendant Control Overhead Crane is compact and ergonomic design, and 2 / double push button.
The enclosures are made from rugged, double insulated thermoplastic material.
These stations have been designed for easy handling and operation, even with heavy work gloves.
This model is belong to F series. Except this kind, we also have XAC series(Schneider Model),Y series, C series, H series, etc,
Also, the button is from 2 button to 6 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.
Description:
Model: AR1-63FD
Max Current: 10A
Max Voltage: 500V
Button No.: 6 push button + E-stop
Speed: double / 2 speed

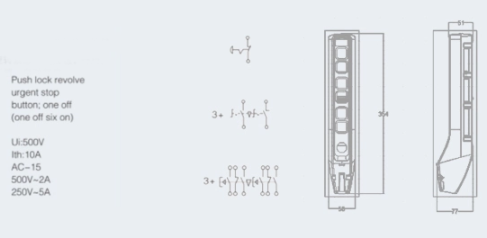

Ui:500V lth:10A
500V-2A 250V-5A
Working temperature: -45~55（℃)
Material: Yellow ABS enclosure
Warranty: 12 months
This model is one important parts in crane industry and mainly control the equipment by wired.
Function Button:
Emergency Stop: if there is emergency case, the equipment will be stop right now when you press the mushroom
Function Button : “↑” “↓” ” →” “←” , single speed
Basic :
| Brand | Acontrol |
| Model: | AR1-63FD |
| Housing Color | Yellow |
| Number of Buttons | 6 |
| Button Color | Black |
| Speed | 2 |
| Start Type | Rotary |
| Button Type | Combination |
| Button Text | Arrow Tip |
Details:

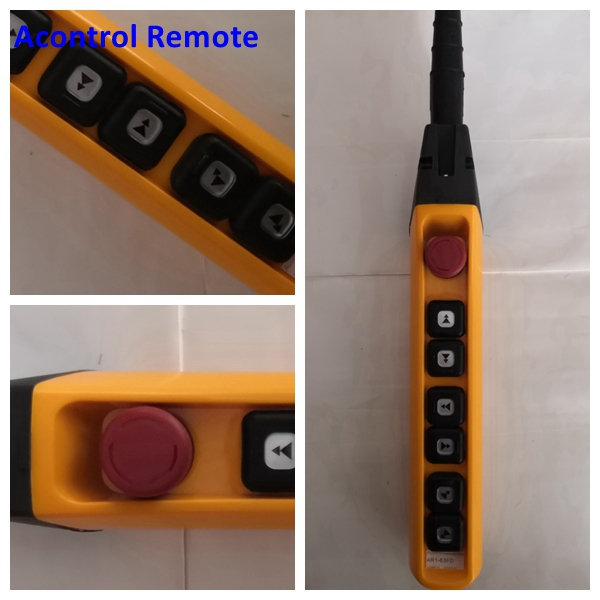

Product Details:
Package:
1 piece per box, 28pieces per carton, carton size:52*47*35cm
Application:
This model are mainly used in crane industry,
- EOT crane
- Overhead crane
- Bridge crane
- Single girder overhead crane
- Double girder overhead crane
- Top running overhead crane
- Under hung overhead crane
- Workstation overhead crane
FAQ:
1. Sample to test is available
2. Customized Brand is available
3. Delivery Fast: 3-4 days for sampling and 7 days for small volume orders
4. CE,FCC standard
Remote Control Switch and Push Button Switch are including 2 button , 4 button, 6 button, 8 Button, 10 button, 12 button, single speed and double speed.
