Pendant Control Station

Pendant Control Station is compact and ergonomic design, and 1 speed push button.

This model is belong to C series. Except this kind, we also have XAC series(Schneider Model),Y series, F series, H series, etc,

Also, the button is from 2 button to 20 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.

Firstly, description

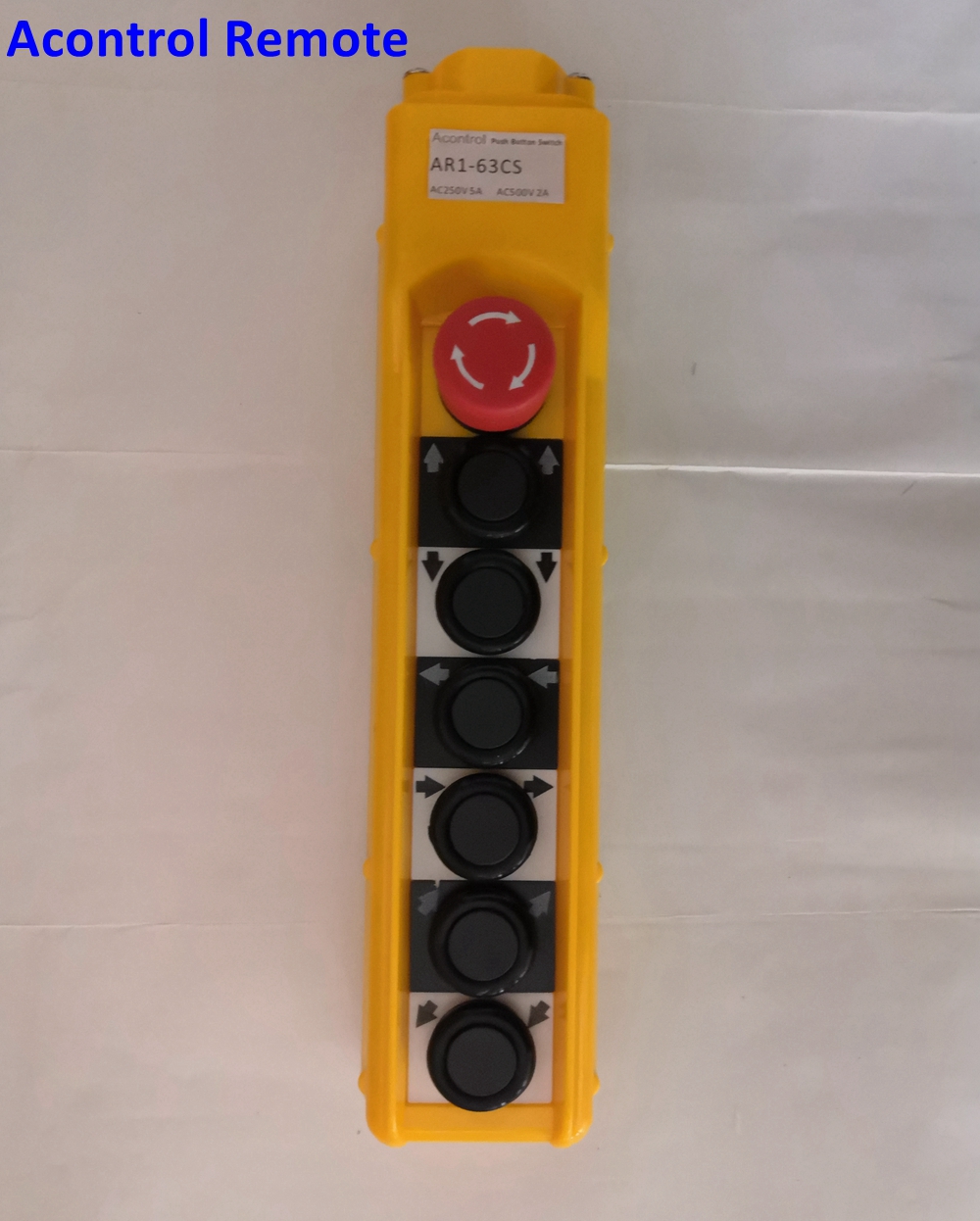

Model: AR1-63CS

Working Current: 5A

Working Voltage: 500V

Button No.: 6 + 1 E-stop, emergency stop cut off the power in an emergency situation.

Speed: single

Button Text: Arrow Tip for each direction

Working temperature: -45~55（℃)

Secondly, advantage:

• Various buttons pendant models (from 2 button to 16 buttons)
• Light Wirght
• Standard emergecny switch to cut off the power
• Durable Yellow ABS enclosure
• Ultra-long service life
• Contacts rated 5A at 500VAC

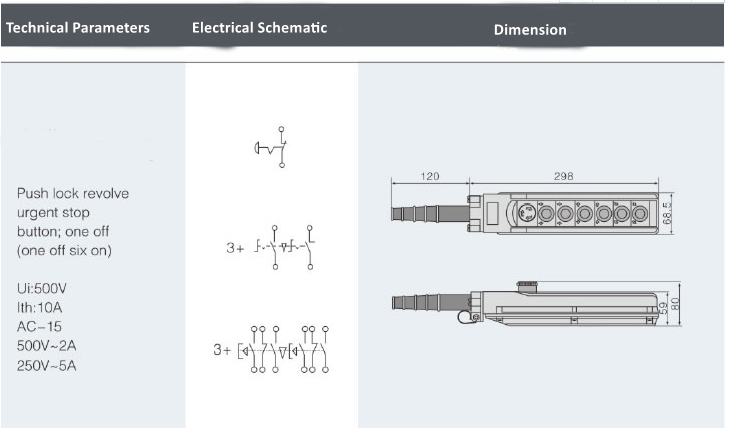

Third, basic:

Thrid, wiring Connection:

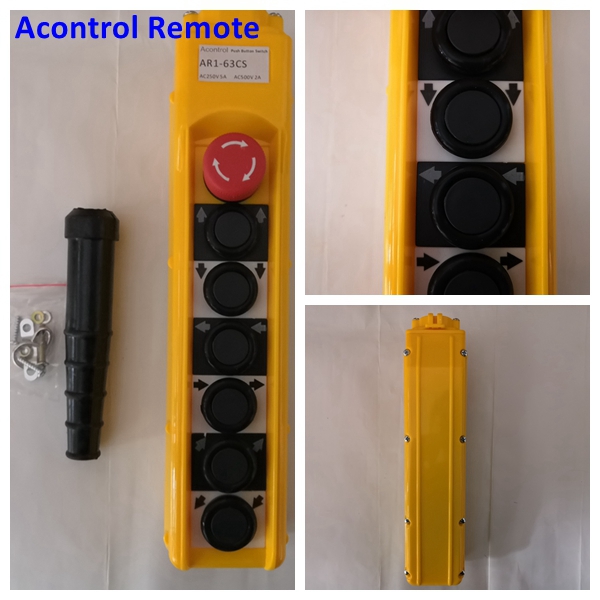

Details:

Packing:

1 piece per box:30.5*9*8cm

20pcs per carton:52 * 32.5 * 34cm

Pendant Control Station are ideal for

1.  Workstations
2.  Monorails and hoist control
3. Electric Chain Winch
4. Assemble lines
5. Cart Transfer
6. Electric chain Hoist
7. Devit crane
8. Lift
9. Garden Machine
10. Power lifts of truck
11. Electric chain Lift
12. Other moving equipment you want to control

FAQ:

1. Sample to test is available

2. Customized Brand is available

3. Delivery Fast:  3-4 days for sampling and 7 days for small volume orders

4. CE,FCC standard
