pendant control unit
Brief:
Model: XAC-A6913
Button Number: 6
Speed: 2 / Double
Other Button: from 2 button to 16 button, single speed or button
Email: [email protected]

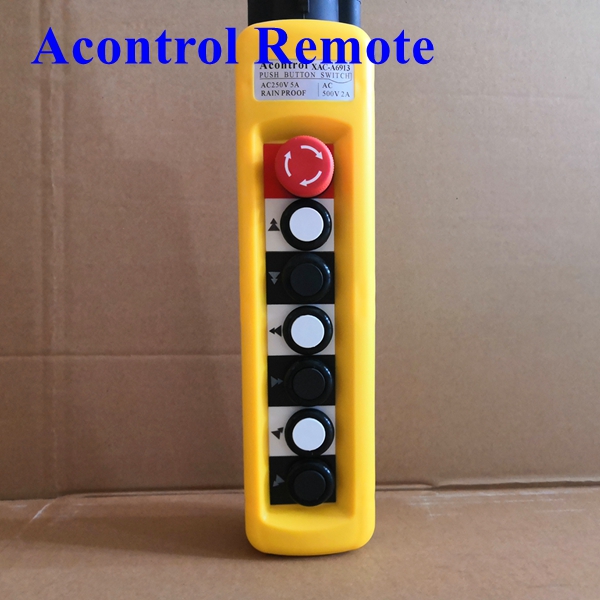

Pendant Control Unit
Pendant control unit is compact and ergonomic design, and 2 Speed push button
This model is belong to XAC series. Except this kind, we also have C series,Y series, F series, H series, etc,
Also, the button is from 2 button to12 button. it according to the model of pendant , single or double speed control system. Mechanical interlock for safety reason.
Basic Information:
Model: XAC-A6913
Housing Material: Sturdy ABS plastic
Contact Type: Normally open
Button Color: Black, white, with emergency stop
Button :one off six on
Contact Rated Current: 10A
Working Voltage: 500V
Specification:
| Brand | Acontrol |
| Model: | XAC-A6913 |
| Housing Color | Yellow |
| Number of Buttons | 6 |
| Button Color | White, Black, Emergency Stop |
| Speed | 2 |
| Start Type | Rotary |
| Button Type | Combination |
| Button Text | Arrow Tip |
| IP Rating | IP54 |
| Working Temperature | -45~55（℃) |
| Warranty | 12 months |
Advantage:
- Made of rugged and high impact thermo plastic
- Ultra-long service life
- 100g shock resistant
- Contacts rated 10A at 500VAC
- Single hand operation, safe and reliable, convenient to use, and can be used with one hand.
- 100% brand new and high quality

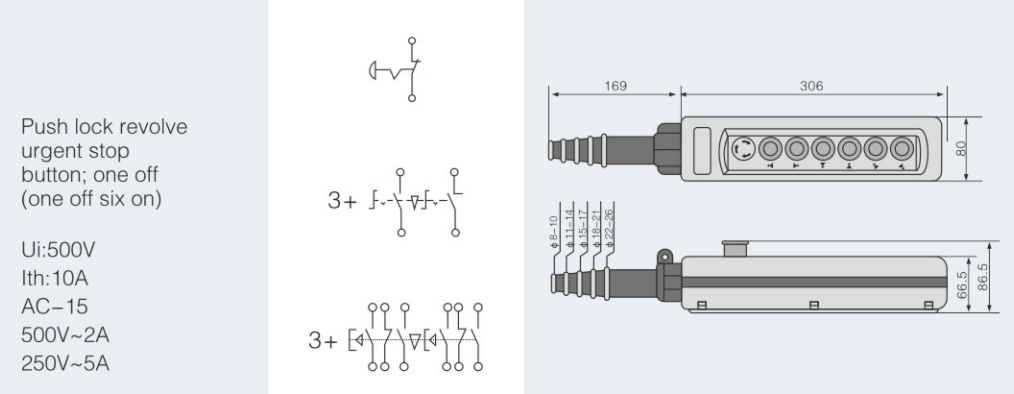

Wiring Connection:
Packing :
1 piece per box, 20pieces per carton
Application:
- Overhead crane with double girder
- Overhead crane with single girder
- Hoist
- lifting equipment
- Tiller equipment
- Garden Equipment
- Electric Winch
- Wire Rope Winch
- Hydraulic winch
- Electric hoist
- Hoist winch
- EOT crane
- Overhead crane
- Bridge crane
- Top running overhead crane
- Under hung overhead crane
- Workstation overhead crane
FAQ:
1. Sample to test is available
2. MOQ: 1 piece
3. Delivery Fast: 3-4 days for sampling and 7 days for small volume orders
4. CE,FCC standard
5. Brand: Customized is available
